What Is
Guided Dental Implant Surgery?
Guided dental implant surgery is an approach to
implant placement that uses digital anatomical information and surgical
guidance tools to help transfer a planned implant position to the patient's
mouth.
It commonly involves cone-beam computed
tomography (CBCT) and may incorporate intraoral scanning.
The resulting data are used to plan implant
position, dimensions and angulation in relation to the available bone,
surrounding anatomical structures and intended final restoration.
A patient-specific surgical guide may then be
manufactured to assist with drilling and implant placement according to the
planned position.
How Does
Guided Implant Surgery Work?
The process begins with collecting the
necessary clinical and radiographic information.
Specialized software is used to create a
three-dimensional representation of the jaw and identify relevant anatomical
structures.
The dentist or implant surgeon plans the
implant position with consideration for bone availability and the intended
crown, bridge or other prosthesis.
When a static surgical guide is used, it is
designed to fit the patient's teeth, oral mucosa or bone.
During surgery, the guide assists in directing
instruments according to the capabilities of the selected system.
Accurate guide seating and stability are
essential because errors in data acquisition, design or guide positioning can
affect implant placement.
What Is
a Dental Implant Surgical Guide?
A dental implant surgical guide is a
patient-specific device designed to assist in transferring a virtual implant
plan to the surgical site.
It may include guide sleeves or channels that
help control the direction of drilling instruments.
The design depends on the number of missing
teeth, planned implant positions, remaining natural teeth and supporting
tissues.
Tooth-Supported
Surgical Guides
These guides rest on remaining natural teeth
and may be used when adequate tooth support is available.
Mucosa-Supported
Surgical Guides
These guides rest on the oral mucosa and may be
used in fully edentulous patients.
Bone-Supported
Surgical Guides
These guides rest directly on the jawbone and
generally require surgical exposure of the supporting bone.
Technologies
Used in Guided Dental Implant Surgery
Cone-Beam
Computed Tomography (CBCT)
CBCT provides three-dimensional information
about jawbone anatomy and important surrounding structures.
Intraoral
Digital Scanning
Digital scanning records the shape of the teeth
and oral surfaces for use in treatment planning.
Three-Dimensional
Planning Software
Specialized software supports virtual implant
positioning, angulation and dimension selection.
CAD/CAM
Technology
Computer-aided design and manufacturing can be
used to design and produce surgical guides and selected prosthetic components.
Three-Dimensional
Printing
3D printing may be used to manufacture surgical
guides from suitable materials intended for clinical use.
Step-by-Step
Guided Dental Implant Procedure
Step 1:
Clinical Examination
The dentist evaluates oral health, remaining
teeth, gums, bite, medical history and medications.
Factors that may affect wound healing or
implant treatment are also reviewed.
Step 2:
Three-Dimensional Imaging
CBCT imaging is performed when clinically
indicated to evaluate jawbone anatomy and important structures, such as nerves
and sinuses.
Step 3:
Digital Scanning
An intraoral scan may be obtained to create a
digital model of the teeth and surrounding oral surfaces.
Step 4:
Virtual Implant Planning
The clinician determines the planned implant
position, diameter, length and angulation while considering the intended
prosthetic restoration.
Step 5:
Surgical Guide Design
A surgical guide is designed to fit the
patient's anatomy and planned implant positions, then manufactured using an
appropriate technique.
Step 6:
Implant Placement
After appropriate anesthesia, the guide is
positioned and checked for stability.
The surgical site is prepared, and the implant
is placed according to the selected guidance protocol.
Step 7:
Healing and Osseointegration
The implant may require a healing period to
integrate with the surrounding jawbone.
The duration depends on individual clinical
factors.
Step 8:
Final Restoration
When the implant is considered suitable for
prosthetic loading, the planned crown, bridge or other restoration is attached.
Guided
Versus Conventional Dental Implant Surgery
Conventional implant surgery uses clinical
examination, imaging and surgical planning, with implant positioning performed
using appropriate instruments and surgical techniques.
Guided implant surgery uses digital planning to
determine implant position in advance and may use a surgical guide to help
transfer the plan to the mouth.
Guided techniques may reduce certain deviations
from the planned implant position in selected cases, but they are not free from
inaccuracies.
Conventional implant surgery also remains an
appropriate treatment option for many patients.
The choice depends on case complexity, clinical
requirements, surgeon experience and available technology.
Types of
Guided Dental Implant Surgery
Static
Guided Implant Surgery
Static guidance uses a prefabricated surgical
guide.
Depending on the system, guidance may be
partial, assisting with selected drilling stages, or more comprehensive.
Dynamic
Navigation Surgery
Dynamic navigation uses tracking systems that
display the position of surgical instruments relative to the digital plan
during the procedure.
It differs from static guidance in its
equipment and operating principles.
Who May
Benefit From Guided Dental Implant Placement?
Guided surgery may be considered in cases
involving:
·
Replacement
of a single missing tooth.
·
Placement
of multiple implants.
·
Full-arch
implant rehabilitation.
·
Limited
space between adjacent teeth.
·
Implant
placement near important anatomical structures.
·
Complex
prosthetically driven implant planning.
These circumstances do not automatically mean
guided surgery is the preferred option in every case.
The Role
of CBCT Imaging in Guided Implant Surgery
CBCT provides three-dimensional information
about the jawbone and surrounding anatomical structures.
It may help assess bone height and width and
identify structures such as the mandibular canal and maxillary sinus.
Imaging should be selected according to
clinical need, with attention to minimizing unnecessary radiation exposure.

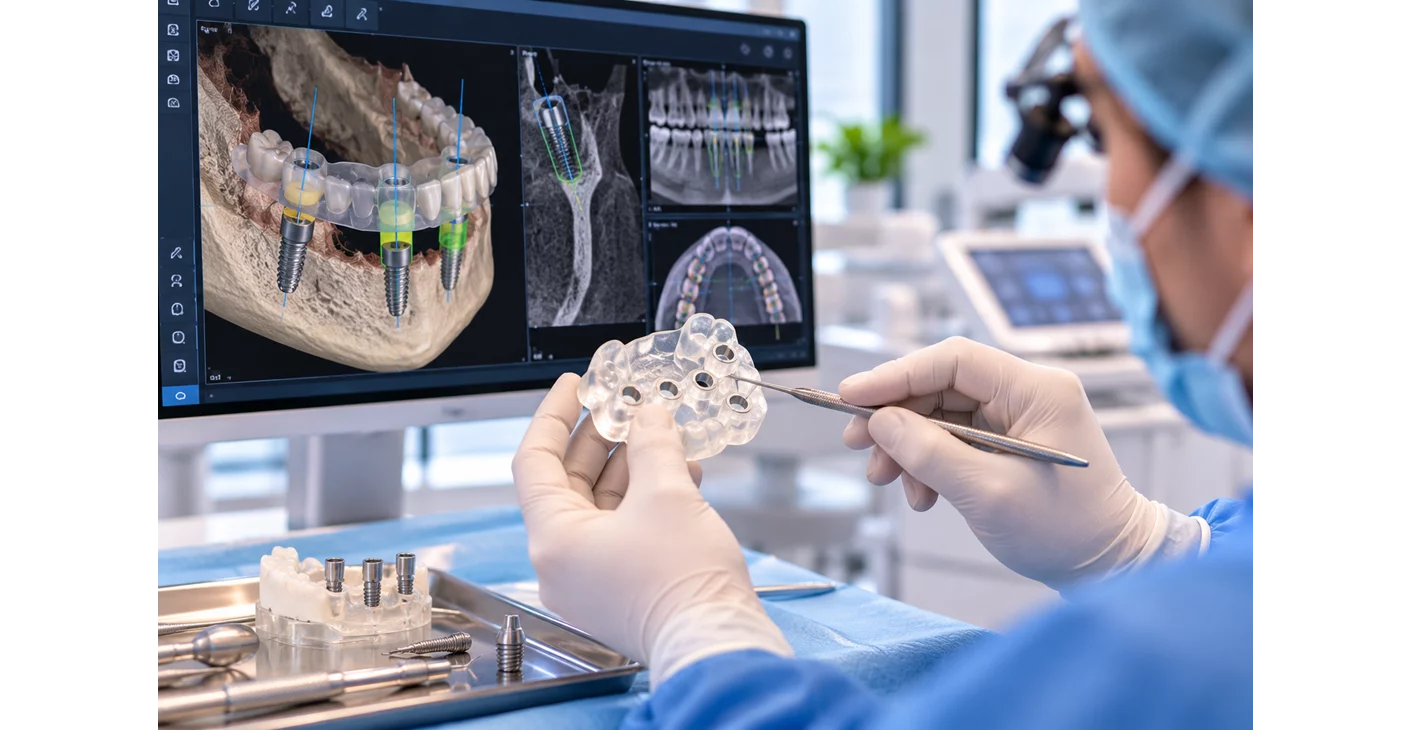

Can
Guided Dental Implant Surgery Be Performed Without a Large Incision?
In selected cases, guided surgery may allow
implant placement through a limited opening in the gum without raising a large
surgical flap.
This approach is commonly referred to as
flapless implant surgery.
However, flapless placement is not appropriate
for every patient, particularly when direct visualization of bone, bone
grafting or management of complex anatomy is required.
Potential
Benefits of Guided Dental Implant Surgery
Potential advantages may include:
·
Preoperative
planning of implant position.
·
Consideration
of the final prosthetic restoration during planning.
·
Assessment
of relevant anatomical structures.
·
Use of
patient-specific surgical guides.
·
Support
for less invasive surgical approaches in selected cases.
·
Coordination
between surgical and restorative treatment stages.
Actual benefits depend on the accuracy of
planning, clinical execution and patient-specific conditions.
How
Accurate Is Guided Dental Implant Surgery?
Guided systems can help transfer the planned
implant position to the surgical site, but they do not achieve perfect
agreement between the digital plan and the actual implant position.
Deviations may occur in implant position,
angulation or depth.
Accuracy is influenced by imaging quality, data
registration, guide design, guide stability, the guidance system and clinician
experience.
Appropriate safety margins around important
anatomical structures remain necessary.
Is Guided
Dental Implant Surgery Painful?
Dental implant surgery is commonly performed
under local anesthesia, with other anesthesia options considered when
appropriate.
Temporary discomfort, swelling or soreness may
occur after surgery.
The intensity and duration of symptoms vary
according to the number of implants, surgical complexity and individual healing
factors.
How Long
Does Guided Implant Surgery Take?
Surgical duration depends on the number of
implants, their positions and case complexity.
Digital planning, imaging and guide fabrication
may require additional appointments before surgery.
The overall treatment may take several months
if osseointegration or bone augmentation is necessary.
Healing
and Recovery After Guided Implant Surgery
Swelling or discomfort may occur during the
first days after implant placement.
Osseointegration is a biological process that
takes time and varies according to bone conditions, implant stability and
individual health factors.
Minimal postoperative discomfort does not necessarily
mean the implant is ready to support full chewing forces.
The timing of prosthetic loading is determined
through clinical assessment.
Possible
Risks and Complications
Potential complications include:
·
Pain,
swelling and bleeding.
·
Infection.
·
Injury
to adjacent teeth or anatomical structures.
·
Nerve
injury or altered sensation.
·
Maxillary
sinus-related complications.
·
Failure
of implant osseointegration.
·
Deviation
from the planned implant position.
·
Problems
with surgical guide stability.
·
Inflammation
around implants during long-term follow-up.
Guided surgery does not eliminate these risks.
Aftercare
Following Guided Dental Implant Surgery
Patients should follow their clinician's
instructions regarding medications, oral hygiene, diet and follow-up appointments.
Soft foods may be recommended for a specified
period, and pressure on the surgical area may need to be limited.
Smoking should be avoided because it is
associated with increased risks of certain implant complications.
Persistent bleeding, increasing swelling,
fever, severe pain or new changes in sensation require prompt professional
assessment.
Frequently
Asked Questions
Is
guided dental implant surgery suitable for everyone?
No. Suitability depends on bone conditions,
oral tissues, treatment requirements and the appropriateness of the guidance
system.
Does a
surgical guide eliminate placement errors?
No. Deviations between the planned and actual
implant position can still occur.
Is CBCT
required for guided implant surgery?
Three-dimensional anatomical information is
generally central to guided planning. Imaging requirements are determined by
the clinician.
Can
multiple implants be placed using surgical guides?
Yes. Surgical guides can be used for single or
multiple implant placement.
Can
temporary teeth be attached immediately after surgery?
Immediate loading may be appropriate in
selected cases, depending on implant stability and other clinical factors.
Is
guided surgery faster than conventional surgery?
Certain surgical stages may be shorter in some
cases, but digital planning and guide manufacturing require additional time.
Is bone
grafting still necessary with guided surgery?
Some patients may require bone grafting if the
available bone is insufficient, regardless of whether a surgical guide is used.
Conclusion
Guided dental implant surgery is a digital
planning and surgical guidance approach used in dental implant treatment.
It combines anatomical imaging,
three-dimensional planning and surgical guides or navigation systems to assist
with implant positioning.
However, appropriate treatment selection still
depends on clinical examination, radiographic assessment, prosthetic planning
and evaluation of individual risks.
Medical disclaimer: Results of surgical and
interventional procedures may vary from person to person. A detailed
consultation with a qualified dental professional is recommended before
deciding on treatment.
